Description

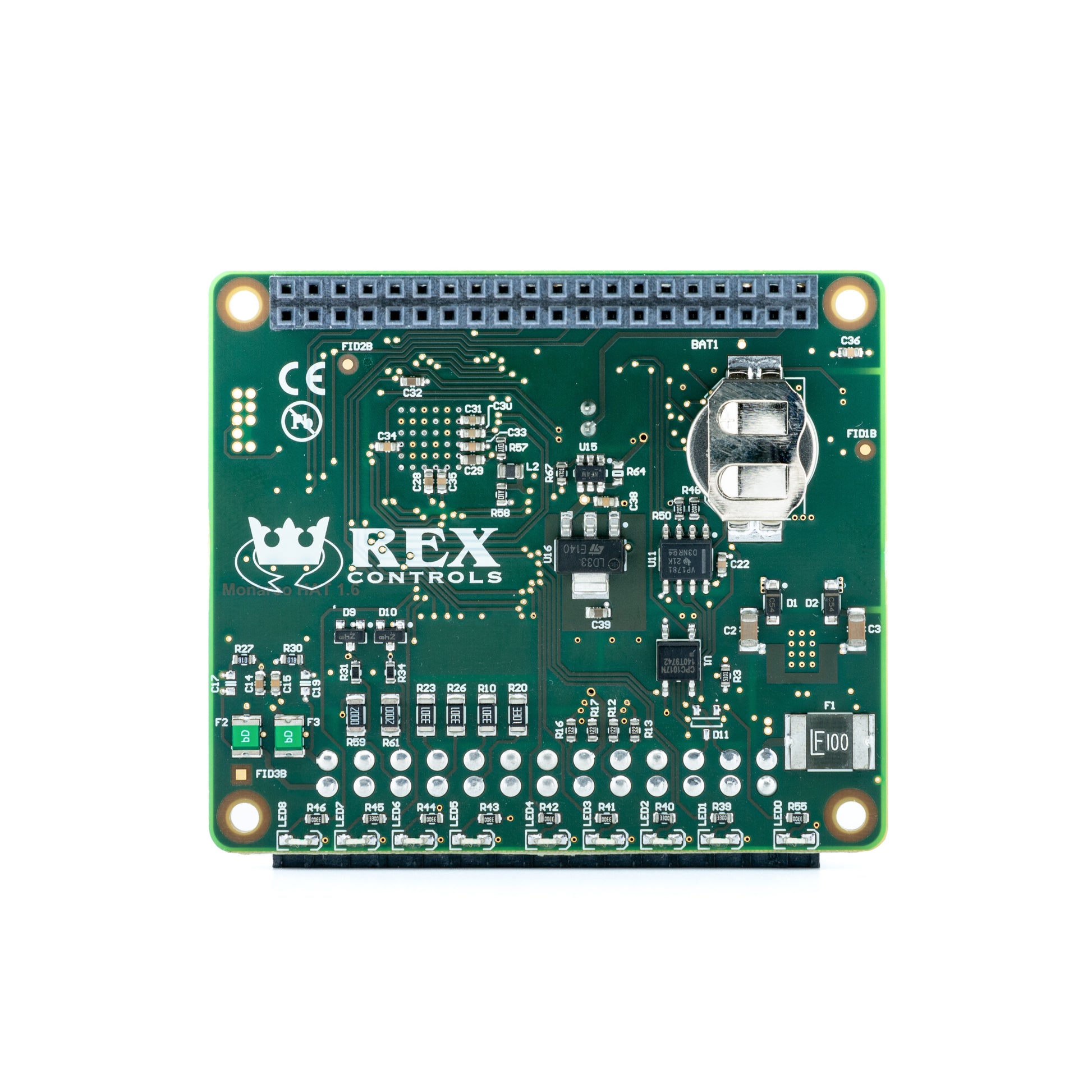

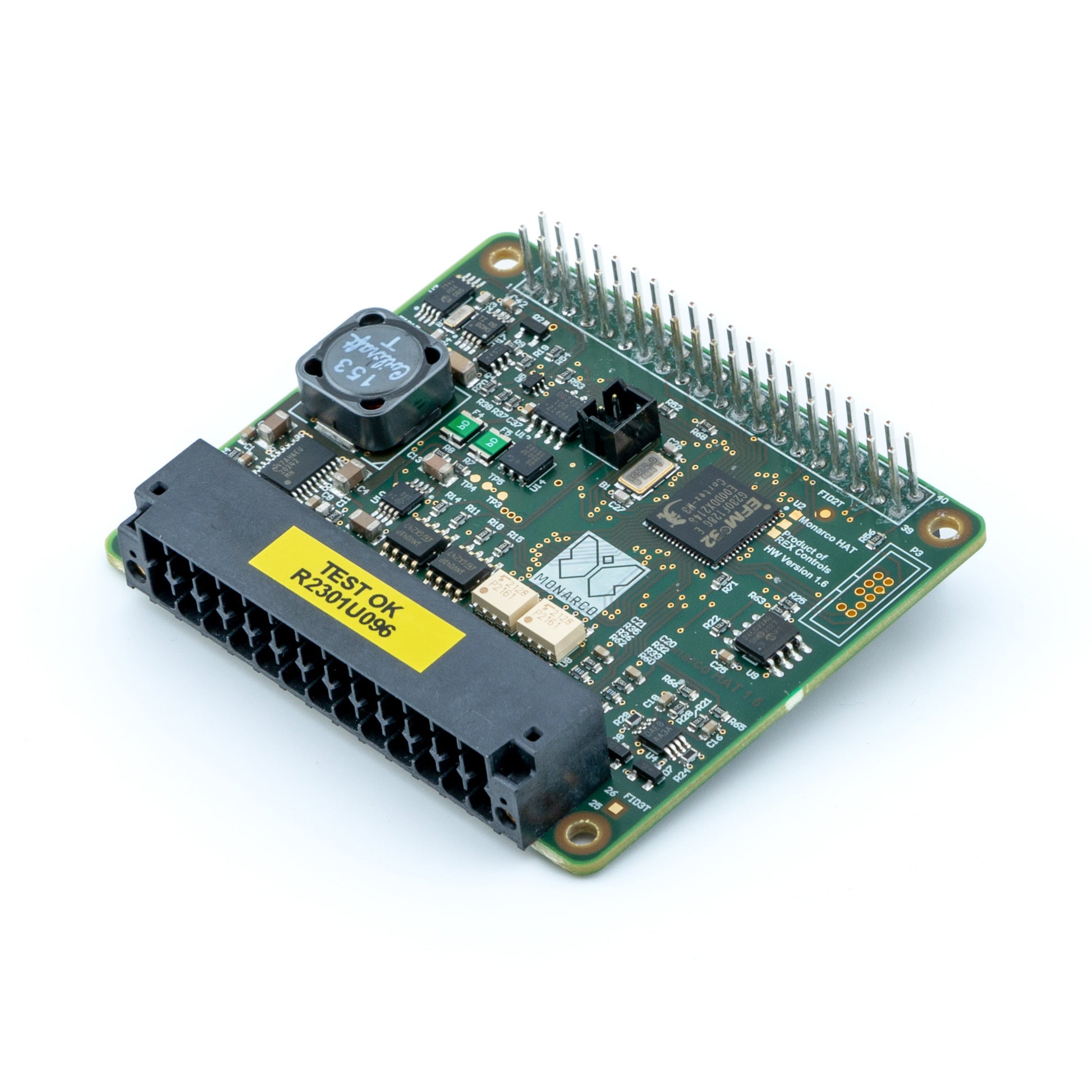

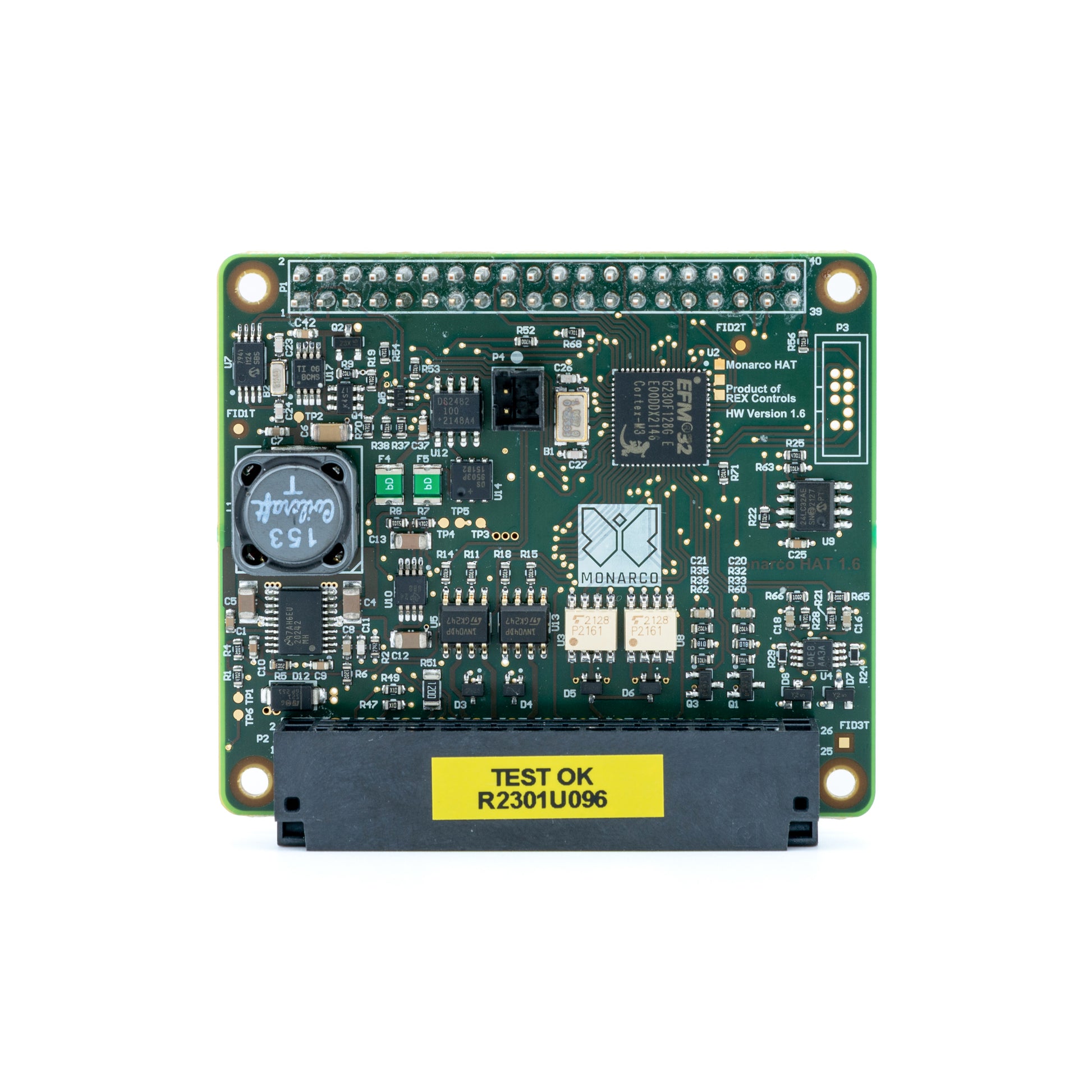

The Monarco Board w/o Aluminum Housing is an add-on board which provides analog and digital input/output interface following industrial automation standards for the Raspberry Pi (B+ and newer) minicomputer. It is designed according to the HAT (Hardware Attached on Top) specification, allowing users to create a PLC from their Raspberry Pi, mount it on a DIN rail and interface it with industrial sensors and devices directly, making it ready for IoT and Industry 4.0 applications, from prototyping to professional solutions.

Overview

• Transforms your Raspberry Pi-like device into a multi-functional controller or data logging system.
• Collects and stores data from standard industrial sensors.
• Establishes a communication link between different devices.
• Offers feedback control for non-critical applications.
• Does not include Raspberry Pi or power supply.

Package Contents

• Monarco HAT Board
• Monarco HAT Detachable connector

• Assembly material


Specifications

• Power Supply: 10-30 VDC

• 4x Digital Inputs (24V Tolerant)
• 4x Digital Outputs (Open Collector)
• 2x Analog Inputs (0-10V, 0-20mA)
• 2x Analog Outputs (0-10V)
• 1x RS-485
• 1x 1-Wire Bus
• 9x LED Indicators
• Battery Backed Internal Clock (RTC Chip)
• Hardware Watchdog
• High-Quality Push-In Terminals, Detachable Connector.

Documentation

• Full technical specification of the Monarco HAT
• Assembly instructions (Raspberry Pi models B+, 2, 3, 3B+)
• Assembly instructions (Raspberry Pi model 4B)
• Monarco HAT knowledge base
• Declaration of Conformity (CE marking)
