Package Contents

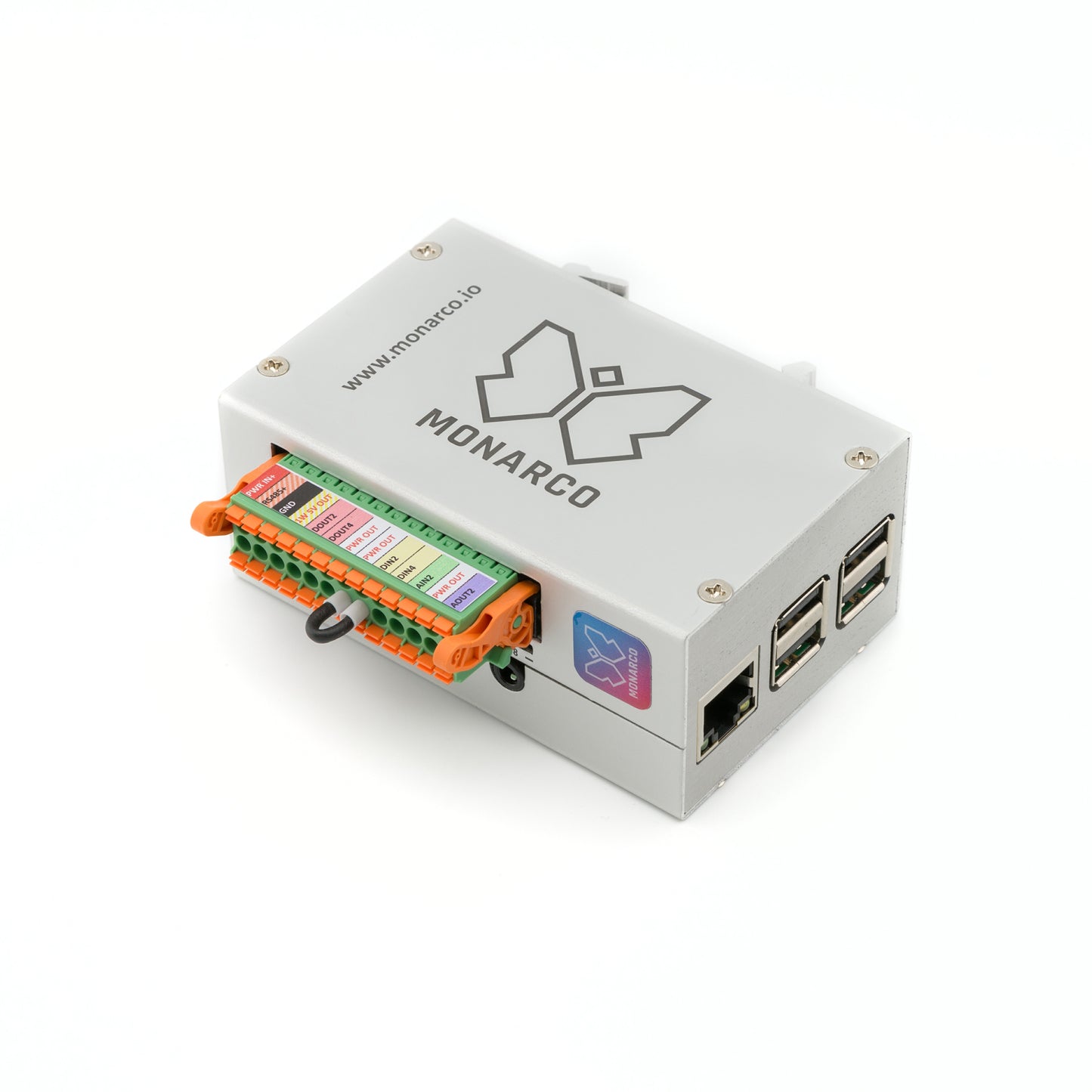

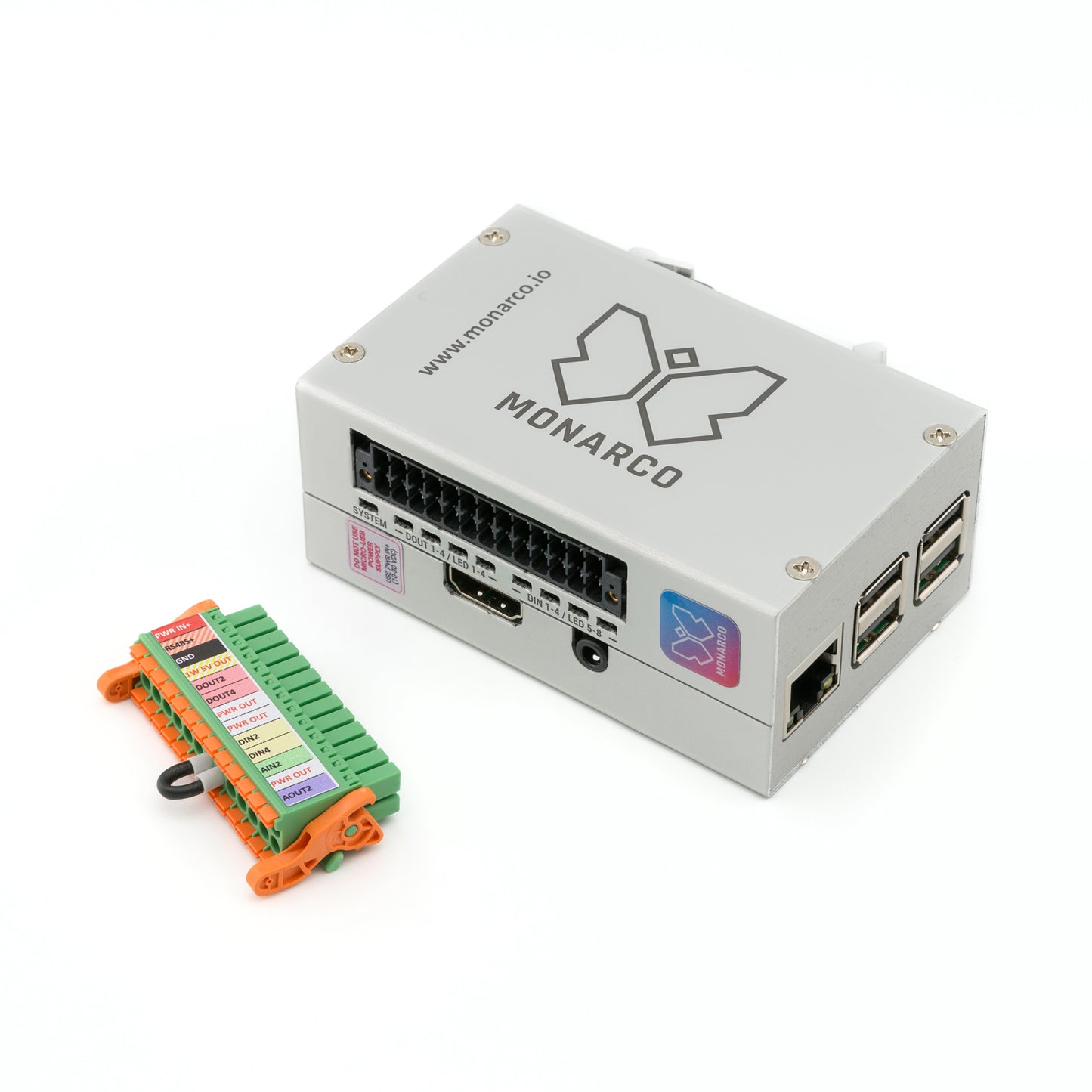

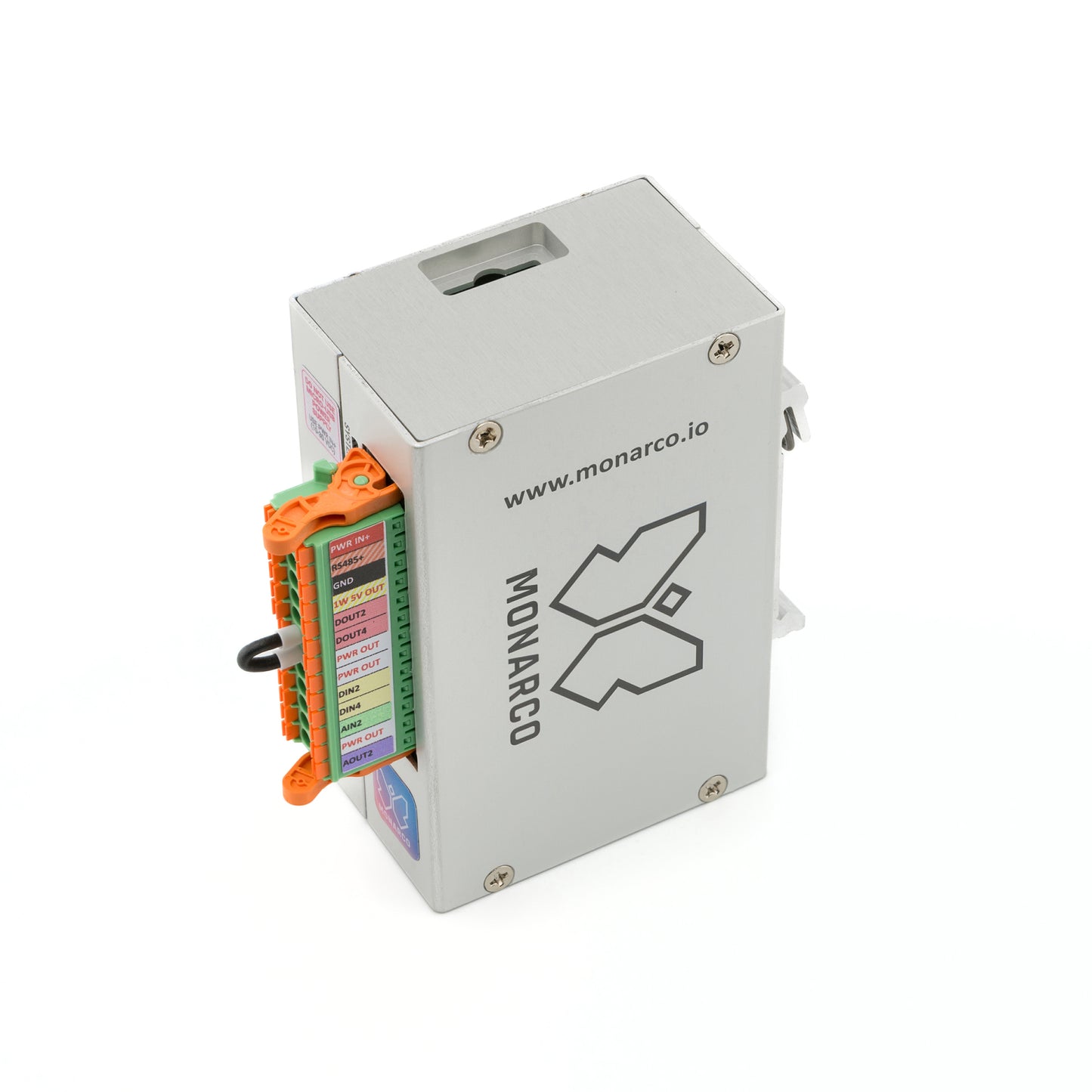

• Monarco HAT Board
• Raspberry Pi 3B+ 1GB

• 16 GB microSD card with preinstalled REXYGEN

• Aluminium case for DIN-rail mounting
• Monarco HAT Detachable connector

• Assembly material

• REXYGEN Runtime Licence (Plus S / Profi S) with the possibility of upgrade

Specifications

• Power Supply: 10-30 VDC
• 4x Digital Inputs (24V Tolerant)
• 4x Digital Outputs (Open Collector)
• 2x Analog Inputs (0-10V, 0-20mA)
• 2x Analog Outputs (0-10V)
• 1x RS-485
• 1x 1-Wire Bus
• 9x LED Indicators
• Battery Backed Internal Clock (RTC Chip)
• Hardware Watchdog
• High Quality Push-In Terminals, Detachable Connector.

Licence comparison

Documentation

• Full technical specification of the Monarco HAT
• Monarco HAT Knowledge Base
• Declaration of Conformity (CE marking)
• REXYGEN Knowledge Base
• REXYGEN Documentation
• REXYGEN Community Forum
